R1903A-SK Lordi High Speed Automatic Button Attaching Machine
R1903A-SK Lordi High Speed Automatic Button Attaching Machine
Regular price
RM28,000.00 MYR
Regular price
Sale price
RM28,000.00 MYR
Unit price
/
per
Couldn't load pickup availability

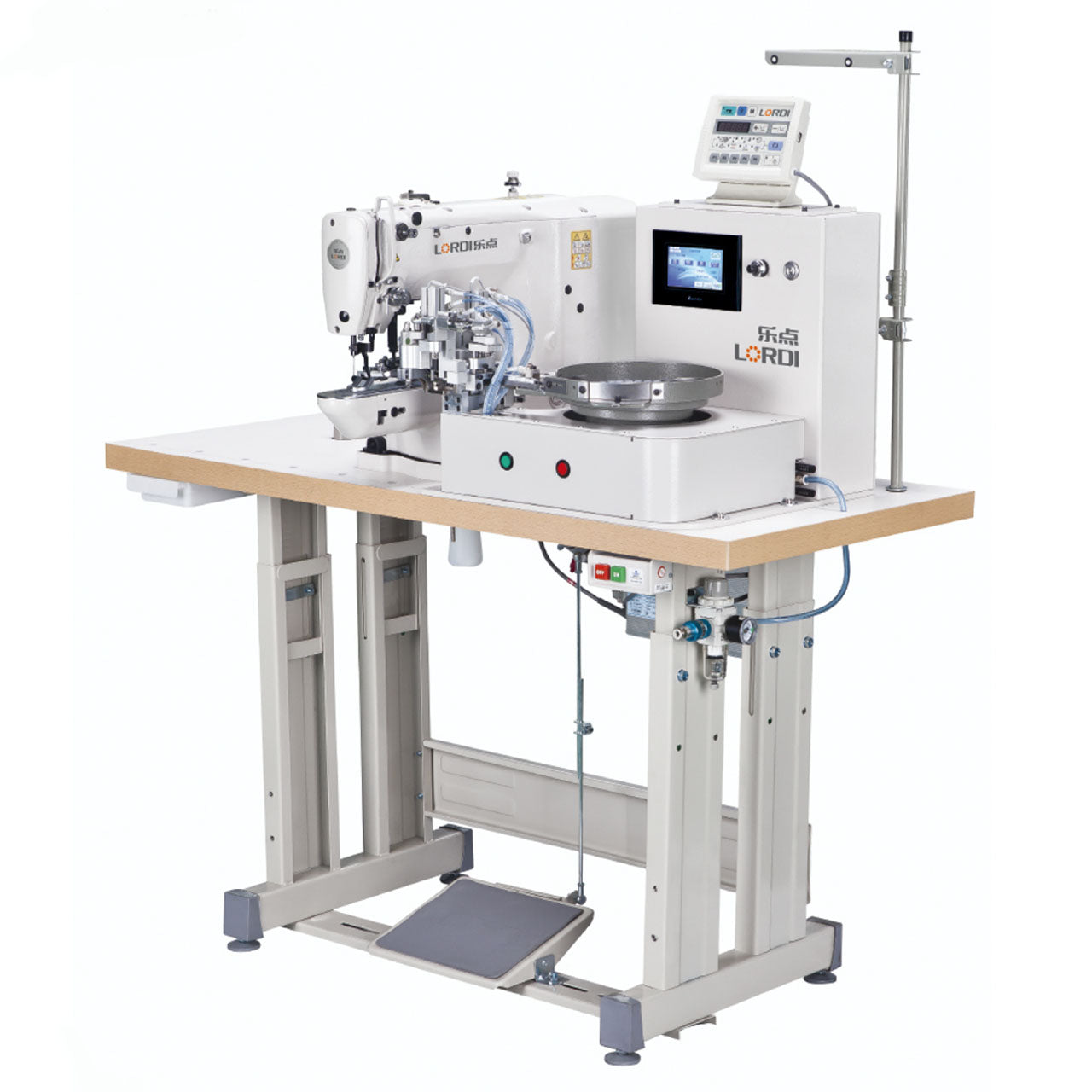

R1903A-SK Lordi High Speed Automatic Button Attaching Machine
Model: R1903A-SK
- Uses servo and stepper motor drive, with a maximum stitching speed of 3000 rpm, enabling fast stitching start and stop. 采用伺服,步进电机驱动,3000RPM的最高缝制速度,能快速地起缝和终止缝制。
- Through linear speed control and automatic presser foot lifting speed adjustment, the entire cycle time is significantly shortened. 通过切线速度及自动抬压脚动作的高速化,大幅缩短了整个循环时间。
- Achieves low vibration, low noise, and high-efficiency production with excellent stitching quality. 实现了低震动,低噪音,高效率的生产性能及缝纫品质

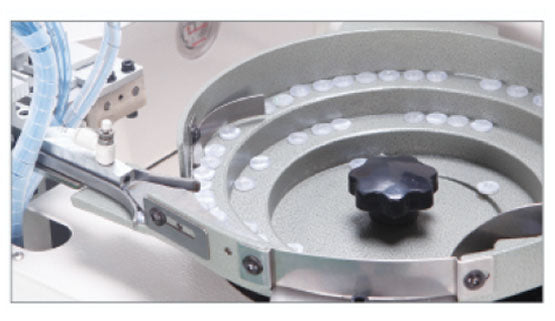

- Equipped with an automatic feeding device, feeding up to 120 pieces per minute, stable performance and easy adjustment. 自动送扣装置,每分钟可钉120粒,稳定性好,调节方便。
- Simple touch interface, with error prompts and troubleshooting solutions. 触屏操作简单直观,带有错误提示及解决方案。

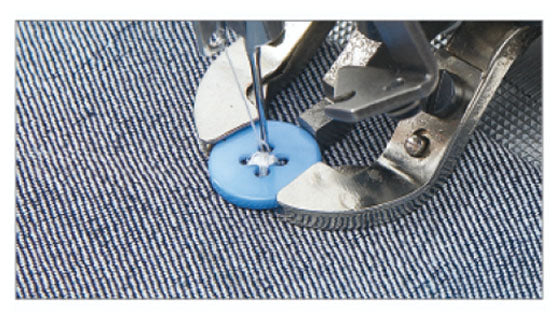

- Supports standard sizes of 8–26 mm (special sizes 5–35 mm), compatible with four-hole, three-hole, or non-standard buttons. 适用标准8-26mm(特殊定做5-30mm)四孔,三孔,两孔,可非标准化定做。
Specification:
| Model 型号 | R1903A-SK |
| Needle 机针 | DP X 17 14# |
| Needle No. 针数 | 1 |
| Thread No. 线数 | 2 |
| Button Diameter (mm) 纽扣直径 | 9-22 |
| Button Size (mm) 纽扣尺寸 | X:2.4-6.8 ; Y:2.4-6.8 |
| Presser Foot Lifting Height (mm) 压脚高度 | 13 |
| Max. Speed (rpm) 最高转速 | 3000 |
| Measurement (cm) 体积 | 107/87/139 |
| Weight (kg) 重量 | 135/160 |
