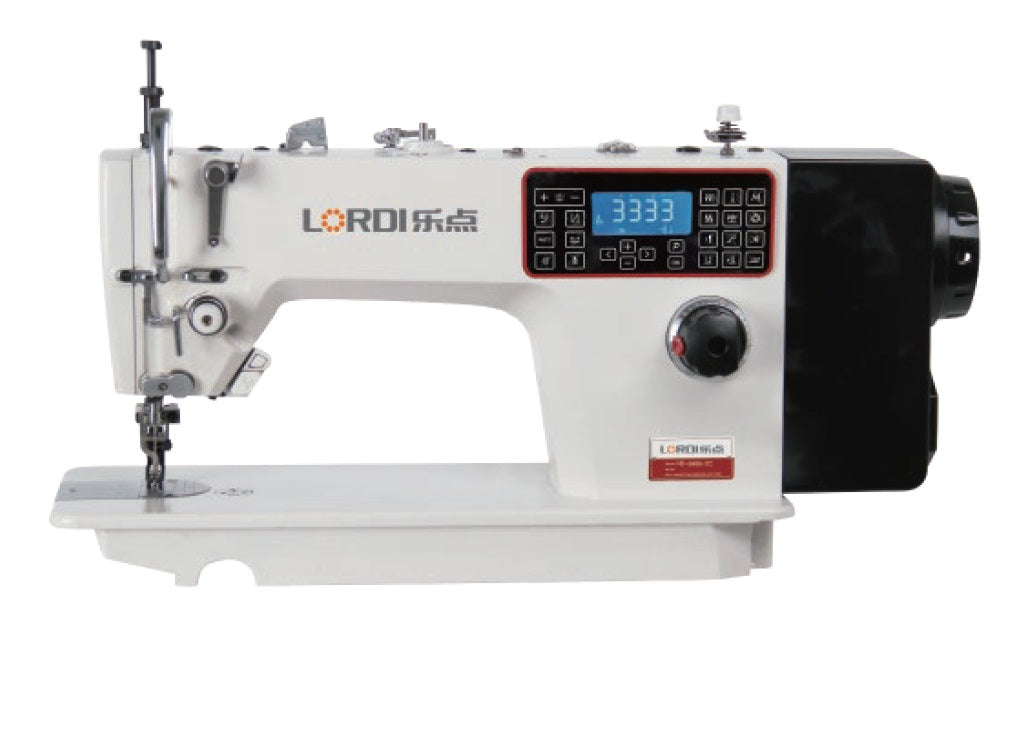

L5490-7C Lordi Integrated Differential Feed Computer Lockstitch Machine

Lordi Integrated Differential Feed Computer Lockstitch Machine  (In Complete Set)

Model: L5490-7C

• The machine features a direct-drive integrated head with an embedded LCD needle box and a large LCD operating screen, offering a sleek and elegant design 直驱一体式机头，崭入试操作视屏，机器外形美观整洁
• The fully enclosed oil pan, combined with micro-oil configurations for the pick rod and needle rod, ensures clean operation and prevents seam contamination 全封闭式油盘，挑杆和针杆采用微量注油配置，以避免缝纫污染
• The main servo system and auxiliary control system allow for adjustable segment-based stitch counting and momentum control for both upward and downward movements. The system supports setting multiple sections, with customizable stitch counts for each section (up to a maximum of 999 stitches per section). This flexibility accommodates different specifications, fabrics, and sewing requirements across various garment processing techniques 通过主伺服系统及辅助控制系统可调整上/下差和分段计数和分段差动量; 可以设定多段数，且每段针数可调 （最大针数999针），适合不同规格不同面料，各种服装加工工艺的缝制需求
• The dual-motor control system effectively balances the surplus and deficit of the upper and lower fabric layers, resolving issues such as uneven hems, distortion, and irregularities in shirts and fashion garments. It meets the precise requirements of formalwear, suits, casual sleeves, swing seams, shoulder seams, front flaps, and other specialized sewing processes 双电机的控制能实现上下二层布料的顺差和逆差，解决衬衫，时装卷下摆不平，扭曲等问题。满足正装，西装，休闲装上袖，合摆缝，合肩缝，门襟等工艺要求
• The double stepper motor design enables intuitive and rapid adjustment of the up/down differential momentum directly on the operation screen, allowing for quick switching between sewing positions to accommodate different curves and spatial requirements. Its user-friendly operation ensures that new workers can quickly familiarize themselves with the machine, achieving the quality and efficiency of experienced operators in a short time.双步进电机的设计，可在操作屏中实现直观快速调整上/下差动量，实现不同缝制位置的快速切换，以适应不同的弧度、容位要求，操作简单，新工人熟悉操作后，短时间内便可达到熟练技术工人的品质和效率
• The operating system features a pattern storage function, allowing for easy access to saved patterns. It can store up to 99 patterns for convenient use 操作系统具有花样存储功能，平时调用方便，最多可存99个花样
• The control system offers both automatic and manual modes. In manual mode, the entire sleeve process only requires a single start, with the left knee activated by the start button, ensuring that manual operation time is not wasted. This makes the system both efficient and convenient 控制系统可分为自动模式和手动模式，手动模式只需启动一次按钮即可完成整个上袖工序，左膝靠启动按键不占用动手操作时间，高效便捷
• The pin bar anti-stuck wire mechanism (patented) effectively prevents clothing electrostatic lint from becoming trapped in the sleeve, ensuring smooth operation and avoiding interruptions 倒缝针距微调机构，实现倒顺缝一致
• The reverse stitch distance fine-tuning mechanism ensures precise and consistent reverse stitching, improving stitching quality and uniformity 标配内置抬压脚

Specification:
